LFS-619
Real-time resistance display, simultaneous wrist strap and left/right footwear testing, relay output and RS-485 communication.
View specifications →PERSONNEL ESD TESTING · ACCESS CONTROL · ESD WORKPLACE SUPPORT
ESD Personnel Testing
and Access Control Solutions
LFS-619, LFS-650 and LFS-652 combination testers for wrist strap and ESD footwear testing, with standalone, display-screen and face-recognition access-control configurations.
FEATURED TESTERS
Three ESD combination testers
Each model is designed to test wrist straps and ESD footwear. Select a standalone tester, a display-screen version or an integrated face-recognition ESD access-control system according to the site workflow.
LFS-650
Configurable resistance limits, LED high/low fault indication, relay output and an optional 8-inch serial display configuration.
View specifications →
LFS-652
Personnel ESD testing for wrist straps, footwear and grounding garments, with turnstile and face-access-control integration options.
View specifications →ESD TURNSTILE & ACCESS CONTROL
ESD turnstile and personnel access-control configurations
For electronics manufacturing, SMT, cleanrooms and laboratory entrances, combine a personnel ESD tester with face recognition, card access, turnstiles and ESD entry/exit records.
Standalone tester
For workstations, entrances or small facilities. A passed test can trigger a relay to control a lock, indicator, buzzer or turnstile.
Display-screen version
For sites that need a clear visual result. LFS-619 documentation covers a 3.5-inch resistance display; LFS-650 and LFS-652 documentation covers an 8-inch serial-screen mode.
Face-recognition access control
Combine a tester with a 7-inch binocular face terminal for identity verification, ESD testing, access control and event records.

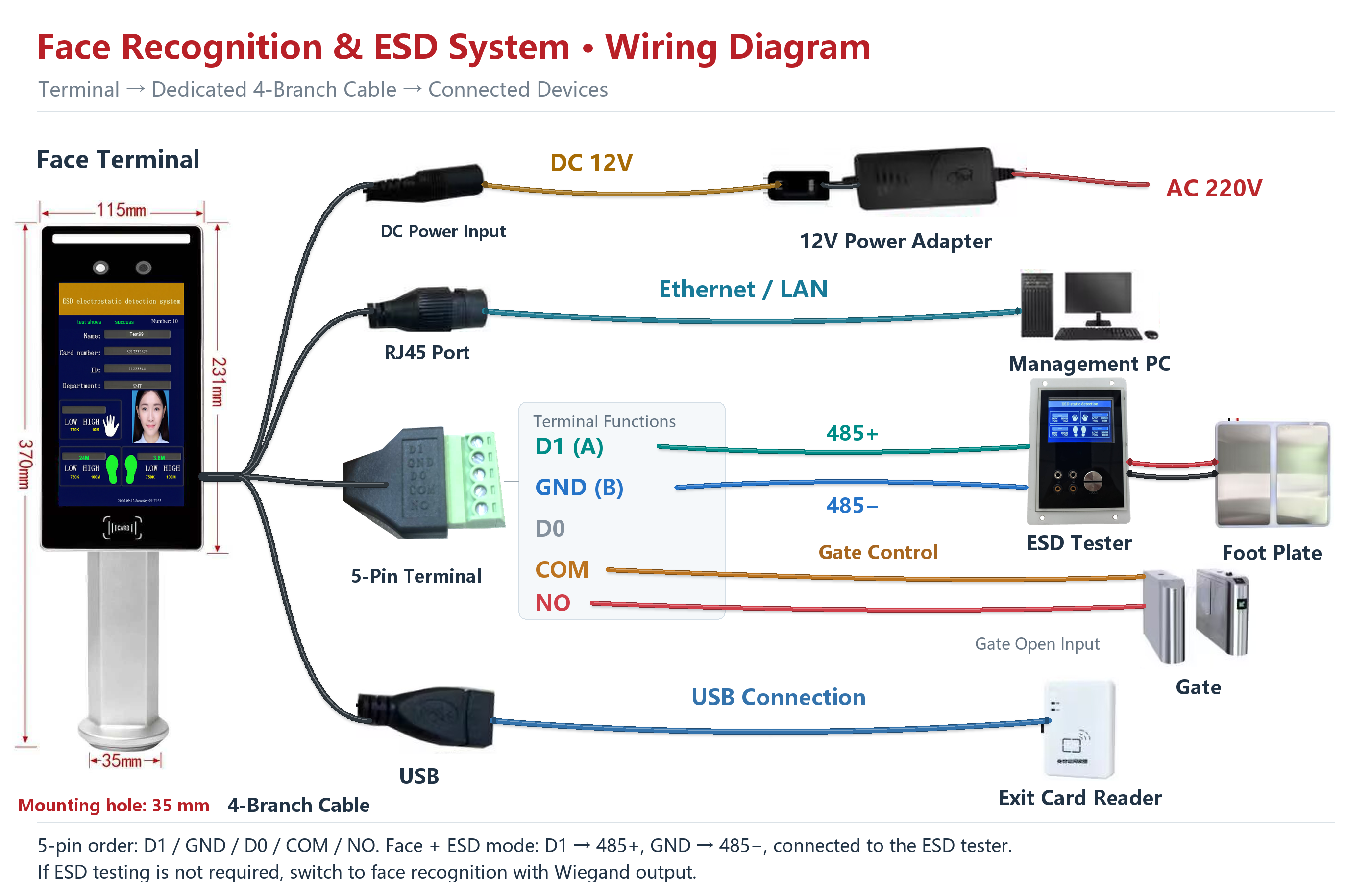

Face-access-control integration
This full wiring diagram shows an LFS-619 tester with a face terminal, access-control board, card reader and RS-485 connection. Final wiring and interfaces are confirmed by the supplied version and project documentation.
LFS-619 · COMBINATION TESTER
LFS-619 Resistance display and relay access control
Tests the grounding performance of operator wrist straps and ESD footwear at the same time. The display provides real-time resistance information, while indicator colors and an audible alarm communicate the result.
Wrist strap and footwear testing3.5-inch resistance displayRS-485Relay output
Wrist strap ranges100K-10M / 750K-10M / 750K-35M
Footwear ranges100K-35M / 750K-100M / 750K-1000M
Result indicationGreen pass; failed results show resistance with red light and buzzer indication
ConnectivityRS-485; relay can integrate with locks, lights and buzzers
SettingsDIP switches set resistance ranges and hand/left-right-foot output logic
Power and panel size12V DC; 140 mm × 100 mm panel size
Test modes and calibration: LFS-619, LFS-650 and LFS-652 support wrist-only, wrist-and-footwear, and full-test modes. The equipment supports customer-performed automatic calibration for convenient annual inspection preparation.
StandaloneBasic ESD test with relay control after a passed result.
Display versionReal-time footwear and wrist strap resistance display.
Face integrationCan be combined with face terminal and turnstile access control.
Face terminal or display option
The available LFS-650 materials include a face-access-control wiring illustration and an 8-inch serial-screen switching setting. The final configuration is selected per project.
LFS-650 · COMBINATION TESTER
LFS-650 Configurable limits and display option
Tests wrist straps and ESD footwear simultaneously. Green, red and blue LEDs indicate pass, low fault and high fault conditions. Relay output supports access-control or alarm integration.
Simultaneous wrist and footwear testHigh/low fault LEDsOptional 8-inch displayRS-485
Wrist strap ranges100K-10M / 750K-10M / 750K-35M
Footwear ranges100K-35M / 750K-100M / 750K-1000M
Result indicationGreen pass; red low fault; blue high fault
ConnectivityRS-485 and relay output for locks, indicators and buzzers
DIP settingsFootwear upper limit 35M / 100M / 1G; wrist upper limit 10M / 35M; lower limit 100K / 750K
Display selectionDocumentation records an 8-inch serial-screen configuration switch
Test modes and calibration: LFS-619, LFS-650 and LFS-652 support wrist-only, wrist-and-footwear, and full-test modes. The equipment supports customer-performed automatic calibration for convenient annual inspection preparation.
StandaloneFor basic ESD testing and lock/indicator integration.
Display screenFor entrances that require a larger visual result display.
Face ESD accessFor identity verification, ESD testing and access control.
Standalone, face and turnstile integration
Materials include LFS-652 standalone and face-access-control information as well as wiring diagrams. Pricing is confirmed per project rather than published online.
LFS-652 · COMBINATION TESTER
LFS-652 ESD access-control and expansion option
For wrist strap, ESD footwear and grounding-garment testing. LED indicators show footwear and wrist strap status. RS-485 and relay output support access control, turnstiles and face-recognition ESD systems.
Footwear and wrist status LEDsGrounding-garment testingTurnstile integrationFace terminal option
Wrist strap ranges100K-10M / 750K-10M / 750K-35M
Footwear ranges100K-35M / 750K-100M / 750K-1000M
Result indicationGreen pass; red low fault; blue high fault
ConnectivityRS-485 and relay output for locks, indicators, buzzers and turnstiles
DIP settingsFootwear, wrist strap and output-logic settings are selectable through DIP switches
Display selectionDocumentation records an 8-inch serial-screen mode or tester resistance-display mode
Test modes and calibration: LFS-619, LFS-650 and LFS-652 support wrist-only, wrist-and-footwear, and full-test modes. The equipment supports customer-performed automatic calibration for convenient annual inspection preparation.
StandaloneDirect relay or turnstile integration after ESD testing.
Display screenFor presenting testing information and results at the entrance.
Face recognitionFor identity, ESD test, event records and access management.
FACE RECOGNITION ESD TERMINAL

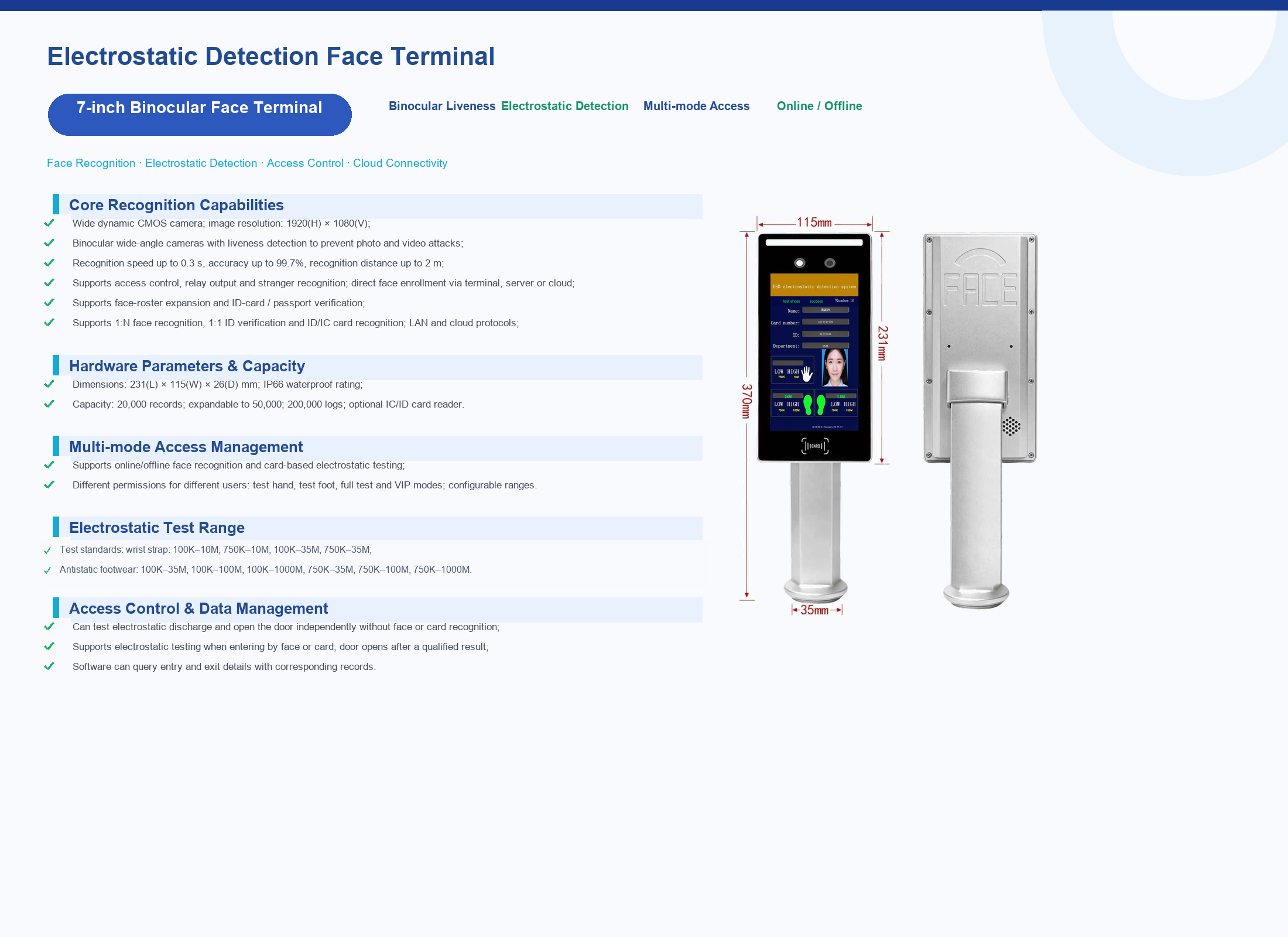

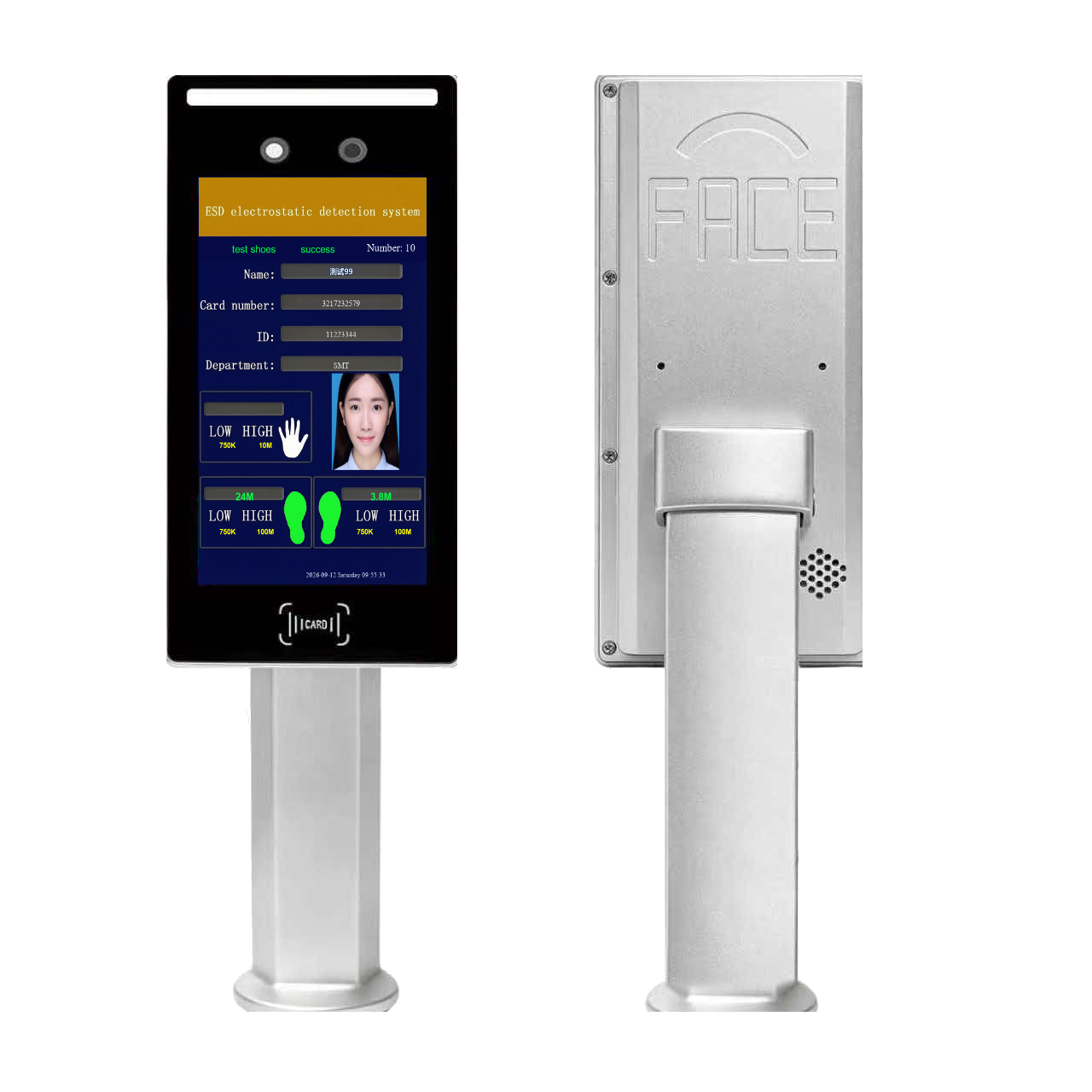

7-inch binocular face-recognition ESD terminal
This terminal can be combined with an LFS tester for online/offline face recognition, card recognition, ESD test control, access control and event records. It can also perform ESD testing without face or card verification when the workflow requires it.
Key advantage: two-way ESD access control
Entry direction: personnel verify by face recognition or card, complete the ESD test, and the turnstile opens after a passed result. Exit direction: card presentation opens the turnstile for exit. Unlike common face-access workflows limited to one direction, this system supports managed entry and exit in both directions.
- Binocular wide-dynamic-range cameras with liveness detection; source material states recognition from 0.3 seconds and up to 2 m distance.
- Offline face enrolment without mandatory backend or cloud; supports 1:N face, 1:1 ID verification and optional IC/ID cards.
- 20,000-person list capacity, expandable to 50,000; 200,000 records; optional IC/ID reader.
- Per-person modes include wrist test, footwear test, full test and VIP; ESD test ranges can be set in software.
Size and protection231 × 115 × 26 mm; source material states IP66
ESD testingMultiple wrist strap and footwear test-range selections
Access controlAccess-control and Wiegand output; supports two-way workflows
Record managementSoftware can query entry/exit details and associated test records
Specifications on this page are organized from the available product documents. Final product appearance, interfaces, software features, test ranges and compatibility are subject to technical confirmation and the supplied product version.
Request product information or project configuration
Tel / WhatsApp: +86 188 1879 5808. Contact Lifengsheng Electronics for LFS-619, LFS-650 and LFS-652 standalone, display-screen, face-recognition and turnstile configurations. Quotations, wiring and on-site compatibility are confirmed for each project.
